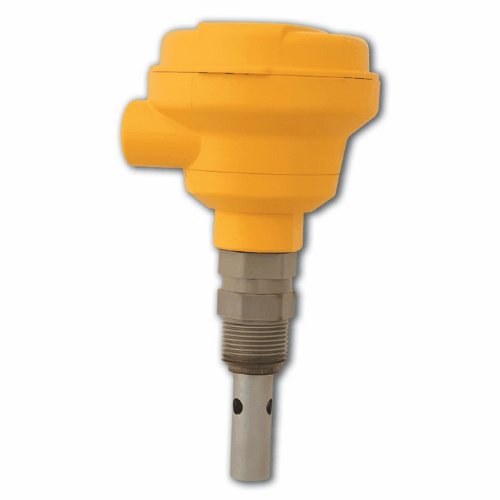

+GF+ Signet Conductivity Cell with Integral Electronics, K = 0.1, Digital S3L output, 3/4" NPT threa

+GF+ Signet Conductivity Cell with Integral Electronics, K = 0.1, Digital S3L output, 3/4" NPT threa Reviews

+GF+ Signet Conductivity Cell with Integral Electronics, K = 0.1, Digital S3L output, 3/4" NPT threa Function Feature

+GF+ Signet Conductivity/Resistivity Electrodes with Integral Electronics
Integral mount systems for quick and easy installation
Compact design for maximum installation flexibility
Digital (S3L) interface or two-wire 4 to 20 mA output
EasyCal with automatic test solution recognition
Cell constant: K = 0.1
Sensor material: 316 SS
Manufacturer number: 3-2850-51-40
Temp range: -10 to 85°C (14 to 185°F)
Model: 3-2850-51-40
Fitting: 3/4 inch NPTM
Part Number: AO-19007-01
Package Quantity: EACH

+GF+ Signet Conductivity Cell with Integral Electronics, K = 0.1, Digital S3L output, 3/4" NPT threa Overviews Product

+GF+ Signet Conductivity/Resistivity Sensors with Integral Electronics are available in various configurations for maximum installation flexibility. These combined integral system configurations allow for in-line mounting and include conductivity electrodes in a choice of K = 0.01, 0.1, 1.0, or 10.0 cell constants. Users have a choice of two outputs: digital (S3L) or 4 to 20 mA. The digital (S3L) output version allows for up to six sensor inputs directly into the Signet 8900 Multi-Parameter Controller. The two-wire 4 to 20 mA output is available with eight 4 to 20 mA output ranges for each electrode cell constant. Additionally, each range can be inverted and are field selectable by the user. All units are built with NEMA 4X/IP 65 enclosures which allow wiring connections with long cable runs of up to 1,000 feet (305 m). EasyCal is a standard feature that automatically recognizes conductivity test solution values for simple field calibration.
